| Features and Benefits |
 Compliant with:JIS C-5973,
IEC, Bellcore |
| Optical Performance 100%
factory tested |

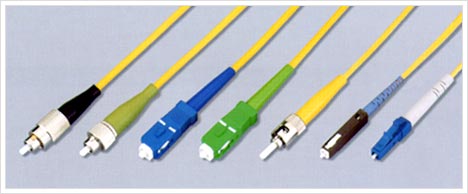

| Standard lengths of SC and
FC, ST assemblies in stock |
| Customized assemblies available
including lengths, connector styles and performance |
| Precision ceramic ferrule
with endface geometry per IEC propoosal |
| |
| Applications |
| Telecommunication networks |
| CATV Networks |
| Data Communications Networks
|
| Active device termination
|
| Instrumentation |
| Local Area Networks |
| Product specifications |
|
| Characteristics |
Conditions |
Values |
| Insertion Loss |
|
<0.3 dB |
| Return Loss |
SPC |
>50 dB |
| |
UPC |
>55 dB |
| |
APC |
>65 dB |
| Durability |
500matings |
<0.2 dB |
| Temperature Cycling |
-40~+ 80¡É(42 cycles) |
<0.2 dB |
| Humidity Cycling |
75¡É, 95%/336hr |
<0.2 dB |
| Vibration |
10~55Hz(2hr) |
<0.2 dB |
| Flex Test |
0¢ª->90¢ª->0¢ª->90¢ª->0¢ª, 5kgf(100 cycles) |
<0.2 dB |
| Twist Test |
¨ª0.9mm:0.75kgf, ¨ª2.0mm¡è:1.35kgf |
<0.2 dB |
| Straight Pull Test |
4.5kg load |
<0.2 dB |
| Impact |
1.5m drop, 8times |
<0.2 dB |
|
|
| Ordering Information |
| Available upon Customer's
Request |
|
