Product > Optical
Fiber Ribbon |
 |
| |
Optical fiber ribbons are manufactured by a correct design to maintain a mechanical,
environmental and transmitting characteristics suitable for international
standards.
We offer a line of optical fiber ribbons suitable for a variety of customer
applications.
The optical fiber ribbon can be supplied with maximum 12 cores and minimum
4 cores
in shape of ribbon unit.
A variety of optical fiber ribbon is suitable for ribbon type optical cable
and application products. |
| |
| Characteristics |
 Stable performance
under mechanical and environmental condition |
| Reduced connecting
time |
| Variety of optical
fiber ribbon (4,6,8,12core) |
| Convenience
of working |
|
Apply to high fiber counts |
|
Marked on optical fiber ribbon |
| |
| Applications |
| Ribbon type
optical cable |
| Optical ribbon
cord |
| High density
optical cable |
| General and
MT fiber optic cable |
 |

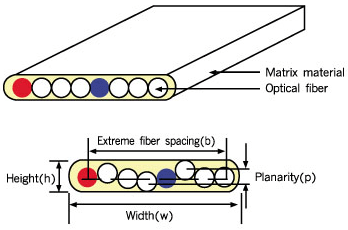

| Structure |
|
| Core |
Width(w) |
Height(h) |
Spacing(b) |
Planarity(p) |
| 4 |
1110¡¾20 |
350¡¾30 |
790¡¾10 |
50 |
| 6 |
1640¡¾30 |
350¡¾30 |
1320¡¾10 |
50 |
| 8 |
2150¡¾30 |
350¡¾30 |
1840¡¾10 |
50 |
| 12 |
3180¡¾30 |
350¡¾30 |
2870¡¾10 |
50 |
|
|
| Product specifications |
|
| Item |
Specification |
| Specification |
Max. 0.37dB/km at @ 1310nm |
| Max. 0.23dB/km at @ 1550nm |
| Cutoff Wavelength |
1100¡1290nm |
| Chromatic
Dispersion |
Max. 3.1ps/nm¡¤km at @1290¡1330nm |
| Max. 18ps/nm¡¤km at @1550nm |
| Lateral Force |
No attenuation change at 25kg/50mm |
| Temperature |
Max. loss change 0.10dB at @1550nm, -40¡+70¡É |
| Water Resistance |
Max. loss change 0.10dB at @1550nm, 23¡É,
22days |
Aging
|
Max. loss change 0.2dB at @1550nm, 85¡¾2¡É,
7days |
|
|
|
|
