The design of multimode fiber consists of a germanium doped core and a silica
cladding. A dual protective acrylate coating is applied over the fiber cladding
to cushion the fiber against microbending losses, provide abrasion resistance,
and preserve the mechanical strength of the glass.
Each fiber is proof tested so that it will survive installation loads and
associated longterm residual stresses, even under extreme environmental conditions.
Finally, each fiber is measured for optical and dimensional properties for
compliance with all specifications listed in the respective fiber data sheets. |
| |
 |
 |
| |
 |
| |
|
| Characteristics |
 Dual coated
construction for excellent environmental performance |
| Excellent dimensional
control for low splice loss |
| Available with
long wavelength characteristics, or long and short, of short wavelength only |
| Mechanically
strippable coating |
| |
| Features |
| 2.5 and 10 Gbps
Capability |
| Longer distance
and high speed in transmission |
| Excellent dimentional
controls for low splice loss |
| |

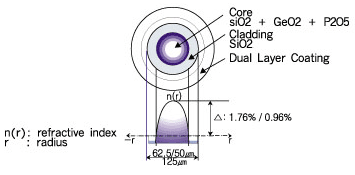

| Structure |
 |
| Product specifications |
|
| Optical Specification |
|
| ¡Ø Attenuation |
|
| ¡Â
3.2 / 0.7 dB/km at 850/1300nm |
No point discontinuity
greater than 0.1dB |
| Water
peak at 1383¡¾3nm ¡Â 2.0 |
Macrobending 75mm 100turns
¡Â 0.5dB at 850/1300nm |
|
|
| |
| ¡Ø Bandwidth |
|
| Wavelength(nm) |
Bandwidth(MHz,km) |
| Grade
A |
Grade
B |
| 850 |
200 |
160 |
| 1300 |
600 |
400 |
|
|
|
| - Core Diameter : 62.5 ¡¾ 3.0um |
| - Numerical Aperture : 0.275 ¡¾ 0.01 |
| Performance
Specifications |
|
| ¡Ø Effective Group Index of Refraction(Neff) |
|
850nm
= 1.496
|
1300nm
= 1.487 |
|
|
| |
| ¡Ø Fatigue Resistance Parameter (nd) 20 Coating Strip Force |
|
|
|
| Geometrical
Specifications |
|
| Glass
Geometry |
Coating
Geometry |
| Cladding Diameter |
125.0 ¡¾ 1.0§ |
| Core-Cladding Concentricity |
¡Â3.0 § |
| Cladding Non-Circularity |
¡Â1.0 % |
| Core Non-Circularity |
¡Â5.0 % |
| Coating Diameter |
245 ¡¾ 10§ |
| Coating-Cladding Concentricity |
¡Â10 § |
|
|
| |
| ¡Ø Standard Length (km/reel) : 2.2~8.8km |
| |
| ¡Ø Environmental Specifications |
|
| Wavelength(nm) |
Induced
Attenuation(dB) |
| 850
nm |
1300
nm |
Temperature Dependence
-60¡É to +80¡É |
¡Â 0.20 |
¡Â 0.20 |
Temp-Humid Cycling
-10¡É to +85¡É (4~98%RH)
|
¡Â 0.20 |
¡Â 0.20 |
|
|
| Ordering Information |
| Available upon
Customer's Request |
|
|
