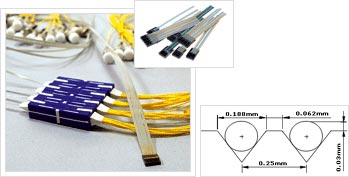

Home > Product > Optical Device > Fiber Array Block   Product Description E-Optopia's Fiber Array Blocks are essential for connecting optical fibers and ribbon fiber to optical planar lightguide circuits(PLC). The fiber array blocks with V-grooves provide high accuracy and stability in PLC packaging. The blocks feature 3-dimensionally expandable stacking structure and compact & light weight fan-out units.   Characteristics 3-Dimentional Expandable Stacking Structure - new Low Insertion Loss & Low PDL Best Return Loss Suitable for International Specification High Stability in Harsh Environment   Applications PLC Device Packaging(DWDM, Splitter, Coupler etc) Fiber Optic Tools & Equipments E-O/O-E Modulation Circuit Totally Integrated Optical Fiber Packaging Product specifications Number of fiber UNIT 1 2 4 8 16 32 40 Spacing Fiber to Fiber ㎛ 250±1 Spacing Ribbon to Ribbon ㎛ 500±1 Dimension : L×W mm 10×4 10×4 10×4 10×4 10×6 10×10 10×10 Gap ㎛ 30±10 Vertical Uniformity ㎛ ±1(1~64FB) Substrate Pyrex Lid ㎛ 1000±25 or 1000±50 Thickness Si Groove ㎛ 1000±25 or 1000±50 Adhesive Thickness ㎛ 32.5±10 Polish Flatness - 5fringes@633nm Polish Angle Deg. 8±0.3 or 0±0.3(Flat) Lid/Groove Substrate - Quartz or Pyrex / Quartz or Si Fiber Type - 9.3±0.5㎛ at 1310nm Fiber Length m 1~2 Operating Temperature ℃ -40 ~ +85 Ordering Information Available upon Customer's Request       Copyright ⓒ 2001 E-OPTOPIA. All rights reserved. |Tel:82-31-386-1394|Fax:82-31-386-1395|e:sales@e-optopia.com.
